Press Brake Machines and Metalworking Equipment Supplier
in UAE
The UAE runs on fast-moving construction, ship repair, oil and gas fabrication, and a re-export trade that pushes goods across the wider Gulf and Africa through free zones like Jebel Ali and Khalifa Industrial Zone. Energy Mission Machineries supplies press brake machines, shearing machines, and plate rolling machines to fabricators across the UAE who need to hit tight project deadlines without compromising on bend accuracy or cut quality.
Our CNC-controlled machines, built with CYBELEC Switzerland controllers and servo hydraulics from HAWE Germany and ATOS Italy, suit workshops producing architectural cladding, HVAC ducting, structural steel, and tank components for both domestic projects and re-export orders. We work directly with contractors and fabrication houses across Dubai, Abu Dhabi, Sharjah, and the northern Emirates to specify the right machine for their production line.
Press Brake Machines in UAE
From high-rise facade panels in Dubai to storage tank components for Abu Dhabi’s oil and gas sector, sheet and plate bending accuracy is non-negotiable across UAE’s fabrication industry. Energy Mission’s press brake range gives fabricators in the UAE a choice between full CNC automation for high-volume, repeat production, and NC or hydraulic control for more flexible, lower-volume work. Every frame is machined on a Floor Boring Machine and mounted on a 12-point roller bearing upper beam, giving the rigidity needed for consistent, twist-free bends at the tonnages this market demands.
CNC Press Brake Machine in UAE
Fabricators supplying UAE’s construction and infrastructure sector need press brakes that can switch between jobs quickly while holding tight tolerances, since a single facade or ducting contractor might run dozens of different panel profiles in a week. Energy Mission’s CNC press brake range covers six series, giving workshops in the UAE options across tonnage, bed length, and automation level.

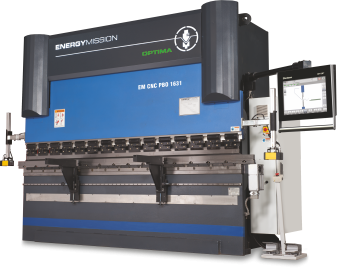

The Optima series runs 25 MT to 325 MT across 1250 mm to 8000 mm bed length, with servo motor plus hydraulic pump drive on the Y1 and Y2 axis cutting power consumption by 45 to 50 percent and beam speed up to 220 mm per second approach, 16 mm per second pressing. It runs on the CybTouch 8PS controller from CYBELEC, Switzerland, and includes a high speed AC servo backgauge with hardened ball screw on LM guides.
The Splendid series (30 MT to 400 MT) delivers similar bending accuracy and repeatability with 40 to 45 percent energy savings, a strong fit for mid-size fabrication shops running two or three shifts.
For heavier plate work common in tank and pressure vessel fabrication around Abu Dhabi’s industrial zones, the Efficient series scales up to 2000 MT, with an ultrasonically and tensile tested IS:2062 grade steel frame and quick V-groove die changeover for fast job switching.
Large infrastructure fabricators producing lighting poles, wind tower sections, or long structural members can specify the Tandem/Tridem series, synchronising two or more press brakes under a single controller for lengths up to 24000 mm, while the Magnum series (100 MT to 2000 MT) adds extra throat depth and daylight for deep or complex bends. Smaller specialist shops often start with the Prudent series, 25 MT to 160 MT with an ESA S630 controller.
All CNC models include Quick Release Clamps, sliding front sheet support on LM guides, and optional laser safety, automatic angle measurement, and robotic arm integration for automated production lines. Contact us to specify a CNC press brake for your UAE facility.
Hydraulic Press Brake Machine in UAE
Not every job in the UAE’s fabrication sector needs full CNC control. General steel fabricators, workshops producing brackets, enclosures, and structural components for local construction projects, and businesses running smaller batch sizes often get better value from a well-built conventional hydraulic press brake.
Energy Mission’s Hydraulic Press Brake covers 30 MT to 600 MT capacity across 1250 mm to 8000 mm bed length. It uses a rear cylinder design with compact cylinders and a low-pressure hydraulic system, giving better rigidity and fatigue resistance for machines expected to run continuously across long UAE working shifts. Positive synchronisation through a welded torque tube keeps the bend angle consistent along the full beam length, with repeatability rated at plus or minus 0.05 mm.
The frame is built from ultrasonically and tensile tested IS:2062 grade steel to IMTMA standards, and a ram tilting arrangement preserves bending accuracy as the machine accumulates operating hours, an important consideration for workshops running the machine for years without a full rebuild. Fast approach and return speed keeps cycle times competitive, while a slower, controlled pressing stroke protects accuracy on the final bend.
Standard fittings include an unhardened multi-V die and semi gooseneck punch, a front manual backgauge with micro-adjustment fingers, lead screws, double rod guides, and chain drive synchronisation. The machine supports on-site NC upgradation, so a fabricator in Sharjah or the northern Emirates can start with the base hydraulic configuration and add a multistep DRO from DELTA, a motorised backgauge with DRO from HENGSTLER, Germany, or high speed NC backgauge from Schneider with VFD, as the business grows.
For UAE fabricators who value durability and straightforward maintenance over full automation, this remains our most recommended entry point. Request a quote for the Hydraulic Press Brake.
NC Press Brake (Front Cylinder) in UAE
The front cylinder NC press brake gives UAE fabricators digital backgauge positioning at a lower cost than full CNC, well suited to workshops producing repeat components for HVAC systems, cable trays, and structural brackets where consistent hole and bend positioning across a production run matters more than multi-axis programming.
The NC Press Brake (Front Cylinder) is available from 30 MT to 600 MT capacity across 1250 mm to 8000 mm bed lengths, built on a frame of ultrasonically and tensile tested IS:2062 grade steel to IMTMA standards. Repeatability is held to plus or minus 0.03 mm, and cylinders are positively synchronised through a welded torque tube for consistent bending across the beam. Fast approach and return speed with a slower, controlled pressing stroke keeps production moving without sacrificing accuracy.
Hydraulic cylinders use seamless honed tube construction with hardened, chrome plated piston rods and twin-type zero-leak PU seals, an important detail for machines running long hours in the UAE’s heat and dust conditions. The standard controller is an Estun E-21 for the X-axis, with the backgauge running on ball screw and guide rod.
Because this machine supports on-site NC upgradation, fabricators can later add an ESTUN E200/300 controller, a Schneider controller, or a CYBELEC TOUCH 8P controller, along with hardened and ground segmented dies, quick release clamps, or Allen key type clamps, scaling automation to match order volume. Get a quote for the NC Press Brake (Front Cylinder).
NC Press Brake (Rear Cylinder) in UAE
For UAE fabricators running mixed production, where job types change frequently but each still demands accurate, repeatable bends, the rear cylinder NC press brake offers genuine two-axis digital control without the investment level of a full CNC system.
The NC Press Brake (Rear Cylinder) covers 30 MT to 600 MT capacity across 1250 mm to 8000 mm bed lengths, running on a Cyb Touch 8P touchscreen two-axis controller from CYBELEC, Switzerland, with a 5.7 inch colour graphic LED backlit display controlling both Y-axis bend angle and X-axis backgauge position. Operators can store up to 200 programs with up to 24 bends and individual backgauge positions each, a strong fit for facade and ducting fabricators in the UAE running many different panel or duct profiles through the week.
Backgauge position accuracy is 0.1 mm, with programmable backgauge retraction, angle correction, backgauge correction, open height per bend, and a job counter for production tracking. A 5-micron accuracy press brake scale on the Y-axis delivers repeatability of plus or minus 0.03 mm, and the high speed AC servo backgauge rides on hardened ball screw and LM guides with timer belt drive, plus a backgauge finger with micro adjustment on double LM guide for the Z-axis.
This machine handles fast changeover between sample runs and mass production, a common requirement for UAE fabricators serving both one-off architectural projects and standardised production contracts. Optional upgrades include a Force Control Module, DA-41T Delem NC controller, quick release clamps, and hardened and ground segmented dies. Request pricing for the NC Press Brake (Rear Cylinder).
Shearing Machines in UAE
Precise, burr-free cutting is the foundation of every job that follows, from architectural cladding sheets to structural plate for tank fabrication. Energy Mission’s shearing machines are built around a rigid box-type structure and four-edge interchangeable HcHCr hardened blades, with hydraulic, CNC, and NC control options to match the throughput and precision needs of fabricators operating across UAE’s construction, oil and gas, and marine sectors.

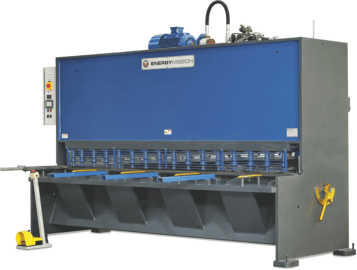

Hydraulic Shearing Machine in UAE
The Hydraulic Shearing Machine, from our HVR series, uses a hydraulically variable rake angle, giving fabricators in the UAE the flexibility to cut thin architectural sheet at a lower rake angle for twist-free edges, or switch to a higher rake angle for capacity beyond the machine’s standard rating when cutting heavier structural plate.
The ram and table use a rigid box-type structure with an inclined member set in the direction of resultant force, minimising deflection under repeated heavy cutting. Blades are four-edge interchangeable HcHCr hardened and ground steel, suitable for mild steel and stainless steel alike, useful for UAE fabricators handling both structural and architectural-grade stainless work. Blade gap is pre-calibrated for automatic adjustment, delivering burr-free cuts without manual setup, and the ram is guided by six hardened ground guide rollers for consistent quality across the full table width.
The holding cylinder uses a sandwich bolted square box design, simplifying maintenance for busy workshops running continuous shifts, and electrical panels use Siemens, Schneider, or BCH components with hydraulic and electrical safety interlocks against overloading. Optional upgrades include a single step motorised backgauge with DRO from HENGSTLER, Germany, a multi-step motorised backgauge with touchscreen DRO from DELTA, Taiwan, a high speed NC backgauge with VFD from Schneider, and a ball transfer table for faster sheet handling. Enquire about the Hydraulic Shearing Machine.

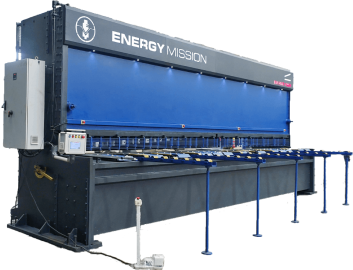

CNC Shearing Machine in UAE
High-volume fabricators supplying standardised plate and sheet sizes, common across UAE’s oil and gas, marine, and prefabricated construction sectors, benefit most from the CNC Shearing Machine, which automates backgauge positioning and cutting sequences for consistent, repeatable output.
It uses the same hydraulically variable rake angle blade system as the HVR series, paired with a servo-driven backgauge capable of positioning speeds up to 500 mm per second and repeatability of plus or minus 0.1 mm. The CNC touchscreen controller stores hundreds of cutting programs, letting operators switch between jobs instantly rather than resetting the backgauge manually, a real advantage for UAE fabricators juggling multiple concurrent projects. Automatic blade gap compensation adjusts by material thickness, and multi-step programmable backgauge sequences allow a single sheet to be cut into multiple widths in one pass. An optional ball transfer table speeds up loading of heavier plate.
This is the machine of choice for UAE workshops scaling toward high-volume, standardised production where labour savings and cut consistency directly affect project margins. Get a quote for the CNC Shearing Machine.

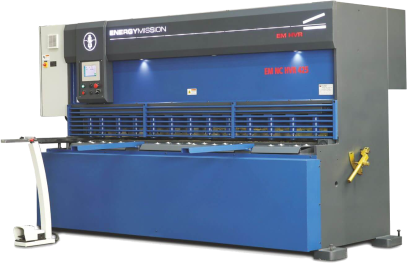

NC Shearing Machine in UAE
The NC Shearing Machine gives UAE fabricators digital backgauge accuracy without the full programmability of a CNC system, suited to workshops that need repeatable positioning but run a narrower range of standard cutting patterns. It runs on an NC backgauge with DRO, offered as a HENGSTLER, Germany single step unit or a DELTA, Taiwan multi-step unit, with positioning accuracy of plus or minus 0.1 mm and up to 25 stored step positions in the multi-step configuration.
The machine retains the variable rake angle for cutting flexibility across material types and the same four-edge interchangeable HcHCr blades used throughout the shearing range. Because it is NC upgradable from the hydraulic base machine, fabricators in the UAE can begin with a standard hydraulic shear and add digital positioning as their production volumes and contract sizes increase, protecting their initial capital outlay. Request pricing for the NC Shearing Machine.
Plate Rolling Machines in UAE
From storage tanks in Abu Dhabi’s industrial zones to pipe sections for marine and offshore fabrication yards, UAE’s heavy fabrication sector depends on plate rolling machines that deliver consistent curvature and tight tolerance, even across the large plate diameters common in tank and vessel work. Energy Mission’s 3-roll and 4-roll machines are built with alloy steel rolls and independent hydraulic roll control to meet this demand.
3 Roll DP Series Machine in UAE
The 3 Roll DP Series is a pyramid-type plate rolling machine handling 6 mm to 80 mm plate thickness across working widths of 1500 mm to 4000 mm, sized for the tank, pipe, and structural fabrication work common across UAE’s oil and gas and marine sectors. The top roll remains fixed while both bottom rolls move independently through separate hydraulic cylinders, and both bottom rolls are power-driven through a planetary gearbox with hydraulic motor for consistent torque delivery.
A double pre-pinching arrangement reduces the flat, unrolled section left at each plate end, cutting rework and material waste, both important on UAE projects with tight cost and schedule targets. The built-in cone bending attachment adds versatility for tapered pipe sections, and the hydraulic dropper end simplifies removal of finished cylinders. Overload protection and digital readout on both bottom roll positions give operators repeatable, trackable results, and a manual centralised lubrication system keeps upkeep straightforward.
Standard equipment includes an extended shaft for profile bending and digital readout, with optional hardened and ground rolls, automatic lubrication, a material feed table, NC controls, side and top support for large diameter work, top roll drive, and interchangeable top rolls. Enquire about the 3 Roll DP Series.

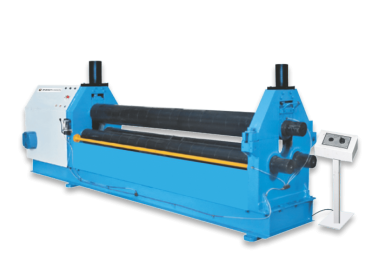

3 Roll HM Series Machine in UAE
The 3 Roll HM Series uses a hydraulic initial pinch design with minimum flat end pre-bending, a valuable feature for UAE fabricators producing pressure vessels and tanks where a tight, uniform curve from end to end is essential for weld quality and structural performance. Hydraulic top roll side movement enables conical rolling, and each roll position is controlled independently through hydraulics for precise mid-job adjustment.
Both drive rolls are powered for uniform torque distribution, reducing plate slippage during the roll, and rolls are made from high-tensile alloy steel, precision ground for consistent surface contact. The hydraulic dropper end simplifies part removal, and NC position control with digital display comes standard, with a full CNC upgrade available for fabricators planning to scale toward tighter tolerance, higher precision production. This machine suits UAE contractors supplying pressure vessel and marine fabrication yards where rolling accuracy directly affects downstream welding quality. Get a quote for the 3 Roll HM Series.

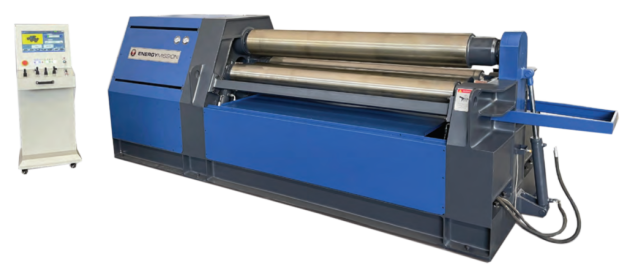

4 RL DP Series Machine in UAE
The 4 RL DP Series uses a four-roll design, a fixed top roll, a pinch roll, and two independent side bending rolls, enabling single-pass pre-bending of both plate ends without reversing the sheet. For UAE fabricators running production shifts against tight construction and marine project deadlines, this significantly reduces handling time compared to a 3-roll machine.
Position control across all four rolls can be specified as CNC or NC, with digital position readout for repeatable settings between jobs. Each side roll is controlled independently through hydraulics, and both the top roll and pinch roll are driven, delivering the torque needed for heavier plate without slippage. Rolls are manufactured from high-tensile forged alloy steel, hardened and precision ground. A hydraulic dropper end simplifies removal of the finished cylinder, and CNC side roll position control supports accurate conical rolling for tapered sections common in pipeline and marine work.
This is the machine we recommend for UAE fabricators running high-volume tank, pipe, or marine component production where throughput and plate-end accuracy both matter. Request pricing for the 4 RL DP Series.
Frequently Asked Questions
1. Does Energy Mission ship press brake, shearing, and plate rolling machines directly to UAE ports?
2. Can machines be specified to meet UAE free zone or re-export documentation requirements?
3. What controller brands are used on Energy Mission's CNC and NC press brakes supplied to the UAE?
4. Can I get a machine configured specifically for stainless steel fabrication work common in UAE's architectural sector?
5. What is the typical lead time for machinery ordered for a UAE fabrication facility?
Contact Energy Mission for Metalworking Equipment in UAE
From Dubai’s construction and facade fabrication sector to Abu Dhabi’s oil and gas and marine industries, Energy Mission supplies the press brake, shearing, and plate rolling machines that keep UAE’s fabrication businesses running on schedule. Contact us here to discuss your production requirements and get a detailed quote with shipping timelines.
